ECO MPP MULTIPURPOSE


MAIN ACTIVITIES

COLLECTION AND DISPOSAL OF LIQUID WASTE
The service involves the use of specific work boats (barges), with which specialized personnel go alongside a ship to the mooring and collect bilge water, washing water or septic water. All this is carried out ensuring compliance with safety conditions and the correct disposal of waste.

CLEANING, DEPOLLUTION AND REMEDIATION OF MARITIME AND LAND MIRRORS
In case of spillage of polluting materials, in particular hydrocarbons, we intervene extremely quickly and ensure an effective containment of the spill, which is then absorbed through the use of specific products and disposed of in accordance with the law.

RENTAL OF ANTI-POLLUTION FLOATING CREAMS
The service consists in the supply and installation of specific floating barriers, the booms, which are designed and built specifically to stem any oily spillage in a body of water or in a stream. We have land vehicles and specific boats for prompt transport and effective drafting of the breakdowns.

EMPTYING AND CLEANING NAFTA CASES
The oil crates emptying and cleaning service is carried out through the use of specially trained personnel and specific equipment, such as explosion-proof pumps and anti-spark nibbling machines. We are able to clean up the crates and dispose of the scraps in full compliance with current legislation.

I EXPUTE BLACK WELLS
We provide a serious and reliable service of draining cesspools and cleaning sewers. For this purpose we use special vehicles equipped with the necessary equipment and qualified personnel, who perform the service quickly and in conditions of maximum safety.

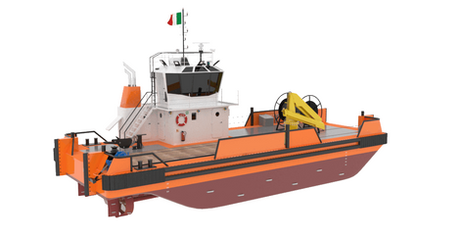

DIMENSIONS AND MAIN FEATURES

Overall length: 20.80 m
Length at waterline: 20.55m
Length between the Perpendiculars: 18.80 m
Overall width: 08.40 m
Width at the waterline: 08.00 m
Construction height: 02.70 m
Presumed draft CP: 01.70 m
Expected displacement CP: 210.00 t
Capacity on deck: 2.2 t / m2
Material: RINA Grade AH36 steel
Navigation: Coastal: Within 6 Miles
Service: Recovery of oily substances (FP> 60 °)
Technical Body: RINA
Certification: Seaworthiness Certificate

CRANE FEATURES

Supplier: HEILA
Model: HLRM25-4S
Weight: 3.05 t
Configuration :

  • Unlimited rotation

  • Swivel control seat with crane

  • Rigid stainless steel tubes and stainless steel fittings

  • Flexible hoses with zinc-nickel treated fittings and denso tape protections for all hydraulic connections Painting of the entire structure in compliance with ISO 12944 Class C5M for marine and offshore environments Pins, screws and all non-"structural" components in stainless steel

  • Turntable and pedestal fixing screws in 10.9 treated steel geomet

  • Winch with net pull of 1500 kg in single pull (this solution restricts the lifting capacity to winch to only 1500 kg on the entire working curve

It is possible to install winches with higher pulling capacity.

LOCALS

Dashboard, Canteen, Warehouse, Accommodation, Engine Room, Rec oil, Ice.

PROPULSIVE SYSTEM

Main Motors: 2
Total Power: 400 Hp each - 1800 rpm
Inverters / Reducers: 2
Propellers: 2x Bronze alloy propellers with mantle
Rudders: 2x Traditional steel rudders on heel

AUXILIARY EQUIPMENT

Main Generator Set: 1x 75 kWe 50 Hz 380V

Auxiliary Generator: 1x 9 kWe 50 Hz
Hydraulic System: Hydraulic Pumps Driven by the Main Engine
Fresh Water System: Hydraulic Pumps Driven by the Main Engine

CASH CAPACITY

SN AD ballast: 4.85 m³
DS AD ballast: 4.85 m³
Fresh water: 13.8 m³
Bilge water: 2.25 m³
Gray / Black water: 1.64 m³
Dirty Oil: 1.80 m³
Clean Oil: 1.80 m³
Gas oil SN: 20.25 m³
Diesel DS: 20.25 m³
Recoil SN AD: 17.50 m³
Ballast SN: 9.60 m³
Recoil DS AD: 17.50 m³
Ballast DS: 9.60 m³
Diesel Service: 3.00 m³
Dispersant: 1.47 m³

DECK SET-UP

  • n. 1 Vertical axis electric windlass with motor under bridge, gypsy and accessory bell, rated power 5.5 kW.

  • n. 2 electric capstain with vertical axis with motor under bridge, nominal power 9 kW, swl pull 3 tons, positioned one in the bow and one in the stern in opposite positions.

  • n. 4 Double Bitts and n. 2 Single Bollards.

  • n. 1 aft bollard for towing.

  • n. 2 Forward Pushers.

  • n. 1 Front windscreen roll.

  • n. 1 Tow hook (BP TO BE CHECKED ACCORDING TO ENGINES)

  • n. 15 Side wheelrubber Fender model diam. 150 mm.

  • n. 1 Emergency Steering System.

NAUTICAL AND COMMUNICATION EQUIPMENT

  • n. 1 Furuno first choice radar with open chirp antenna.

  • n. 1 Furuno711c Autopilot with single control station.

  • n. 1 Furuno FC870 depth sounder complete with 50/200 Khz rubber transducer.

  • n. 1 Epirb Sailor 466 mhz with hydrostatic hook.

  • n. 1 Computer complete with navigation software.

  • n. 1 Vhf Icom (not class A).

  • n. 1 VHF stylus antennas with steel base.

  • n. 1 GPS antennas grc.

  • n. 1 open communication intercom that allows deck-bridge communication.

  • n. 2 VHF signal repeaters of which n. 1 in the canteen and n. 1 in the living room corridor.
